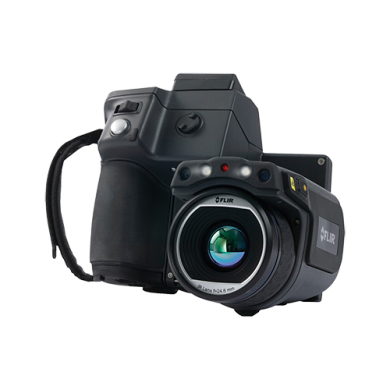

T630
You need troubleshooting tools that can help you find and report equipment problems fast. That’s exactly what T-Series cameras do. They let you see invisible heat caused by electrical resistance and mechanical wear early enough to help you head off expensive downtime and potential danger.
• 640 x 480 thermal resolution (307,200 detection points)
• Thermal sensitivity 0.04°C
• 8X Continuous Zoom
• High temperature option to +2000°C

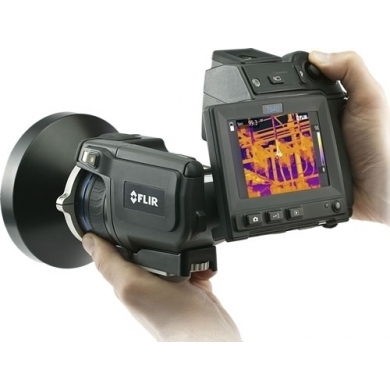

• Full range of wide-angle, tele and close-up lens

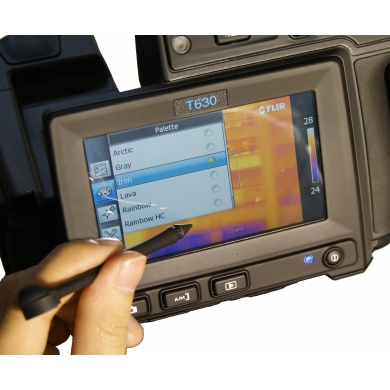

• Text, sketch, draw-direct and voice annotation
• Video recording and periodic save function
• Customized measurement presets
• GPS and compass annotation
• UltraMax™ resolution enhancement to 1280x960
| Thermal Camera | |
| Focal Plane Array (FPA) / Spectral range | Uncooled microbolometer / 7.5-14 μm |
| IR resolution | 640 x 480 pixels |
| Thermal sensitivity / NETD | <0.04°C @ +30°C (+86°F) / 40mK |
| Field of view (FOV) / Minimum focus distance | 25° x 19° / 0.25m (0.82 ft.) |
| Spatial resolution (IFOV) | 0.69 mrad |
| Focus | Automatic or Manual |
| Zoom | 1 - 8x continuous, digital zoom |
| Object temperature range |
-40°C to +150°C (-40°F to +302°F) +100°C to +650°C (+212°F to +1202°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Spotmeter | 5 |
| Area | 5 boxes with max / min / average |
| Automatic hot / cold detection | Auto hot or cold spotmeter markers within area |
| Isotherm | Above / below / interval |
| Emissivity correction | Variable from 0.01 to 1.00 or selected from materials list |
| Measurement corrections | Reflected temperature, optics transmission and atmospheric transmission |
