E95

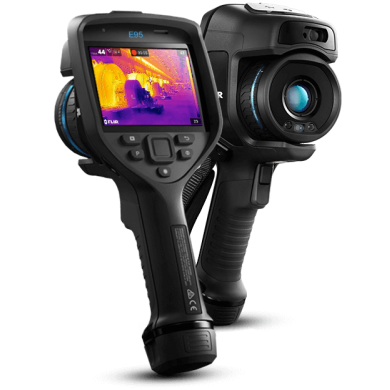

FLIR E75, E85, and E95 cameras offer the superior resolution and range performance needed to quickly identify hot spots and discover potential points of failure in electrical distribution and mechanical systems. With up to 161,472 pixel resolution and a larger, more vibrant LCD screen than any other pistol-grip thermal camera, the Exx-Series makes it easier than ever to diagnose problems – even at a distance. Avoid costly shutdowns and lost production time through regular predictive maintenance routines with these rugged, intuitive cameras.

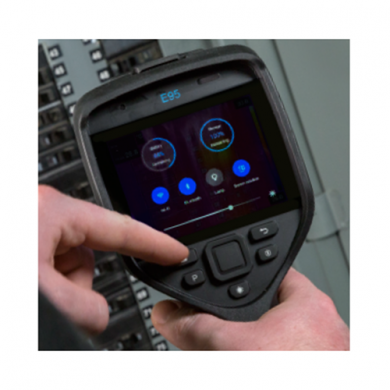

The FLIR E95 offers the great features of the E75 and E85, plus up to 161,472 points of temperature measurement.
• 464 × 348 IR resolution (161,472 pixels)
• NETD 0.03 °C@30 °C
• 4X continuous digital zoom
• High temperature up to +1500°C
• Optional lens with AutoCal™ function
• Live IR video with data
• Automatic GPS and direction record
• Autofocus with laser pointer, faster and more accurate
• UltraMax™ function, generating IR images with 928 x 696 resolution
| Thermal Camera | |
| Focal Plane Array (FPA) / Spectral range | Uncooled microbolometer/7.5–14 µm |
| IR resolution | 464 × 348 pixels |
| Thermal sensitivity / NETD | 0.03 °C@30 °C |
| Field of view (FOV) / Minimum focus distance |
42° × 32° / 0.15m (0.49 ft.) 24° × 18° / 0.15m (0.49 ft.) 14° × 10° / 1.0m (3.28 ft.) |
| Spatial resolution (IFOV) |
1.66 mrad/pixel, 42° 0.90 mrad/pixel, 24° 0.52 mrad/pixel, 14° |
| Focus |
Continuous LDM One-shot LDM One-shot contrast Manual |
| Zoom | 1–4× continuous, digital |
| Object temperature range |
–20 to +120°C (–4 to 248°F) 0–650°C (32–1200°F) 300–1500°C (572–2732°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15–35°C (59–95°F) and object temperature above 0°C (32°F) |
| Spotmeter | 3 in live mode |
| Area | 3 in live mode |
| Automatic hot / cold detection | Auto-maximum/minimum markers within area |
| Isotherm | Above/Below/Interval/Condensation/Insulation |
| Emissivity correction | Yes: variable from 0.01 to 1.0 or selected from materials list |
| Measurement corrections | Yes |
